Description

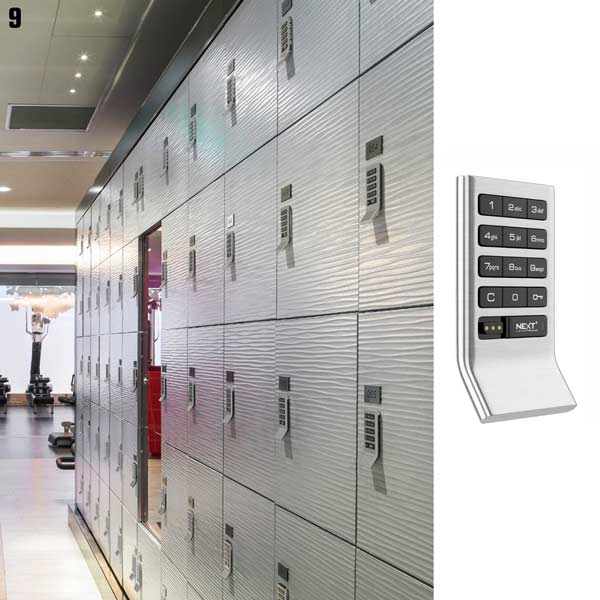

DigiLock Axis keypad locks with Pull Handle

DigiLock Axis keypad locks with Pull Handle

Features:

Alphanumeric standard keypad

Code length 4-digit User Code or an ADA compliant User Key.

Key slot to operate locks with an ADA compliant User Key

All metal housing

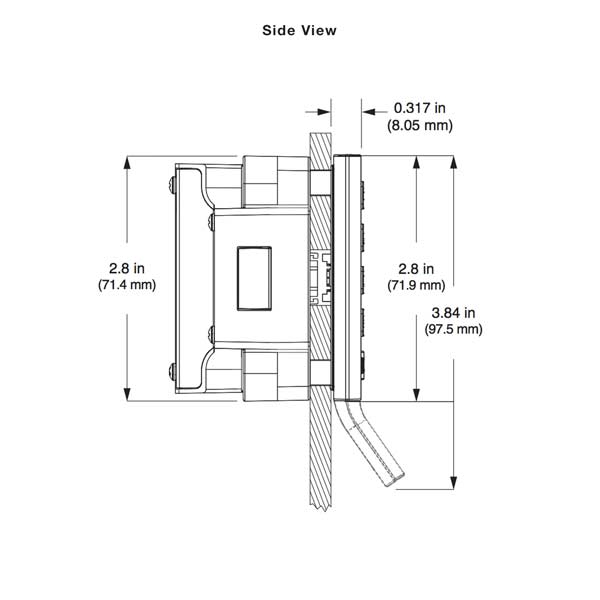

Slim design  5/16″ (8mm) profile

IP55 rated for moisture and dust protection

Brushed nickel or black finish

Visual & audible indicators

Power Source:  4 x AA Batteries lasting approximately 128,000 cycles for Keypad

Management:

Programming and management access are accomplished via patented electronic keys. An optional mobile application allows simplified lock management and audit trail.

Shared use:

In shared use functionality, the locks are designed for day-use lockers. The user chooses an available locker and operates it with a self-selected user credential. Once the locker is vacated, it becomes available for a different user.

Assigned use:

In assigned use functionality, the locks are designed for lockers that are for private use. The user is assigned a locker and operates it with their assigned user credential.

Manage with electronic keys or mobile device

Programmable auto unlock

Customizable settings

Built-in audit trail

Fitting and installation:

Available in standard, vertical, and horizontal body styles.

*Also available without handle. To view the “Without handle model”  Click here

Patented snap-lock cable connector

Simple installation for new or retrofit applications

Non-handed

Adapts to multiple door thickness

Locking mechanism:

Deadbolt Features:

A1/2″ (12.7mm) motorized deadbolt designed for either shared or assigned use functionality.

Deadlatch Features:

A 1/2″ (12.7mm) motorized deadlatch designed for assigned use functionality.

System requirements:

Please note: This solution requires the following components:





Product of Netherlands
